Hydraulic Tools

Nut Splitters
A special tool used to shear nuts. They have wide application in oil and gas industry, mining industries, process plants, chemical industry. Many assemblies, flanges, cover of large vessels are nut bolted. Over period of type the nut freezes due to corrosion or some other reason, in its position and is difficult to remove them. Under such circumstance the nut splitter shears the nut without damaging the stud. Nut splitters utilize chisels to cut the nut. Small hydraulic jacks drive the chisel.

Features
• To remove corroded/ frozen nuts
• Easy to use, No damage to stud or bolt
• Can be operated with Hand Pump & Motorized unit
• Industrial Range for Metric & Imperial Sizes
• Heavy Duty Chisels
• Applications: Petro-Chemical, Steel, Mining etc.
View Catalog   View More

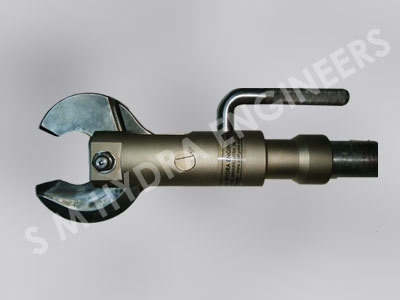

Hydraulic Cable Cutters
A cutter tool used to cut Copper or Aluminum Cables

• Light Weight, Easy to use
• Can be operated with Hand Pump or Motorized unit
• Cutting Size Up to Ø 120mm size cable
• Low maintenance
• Operating Pressure up to 700 bar.

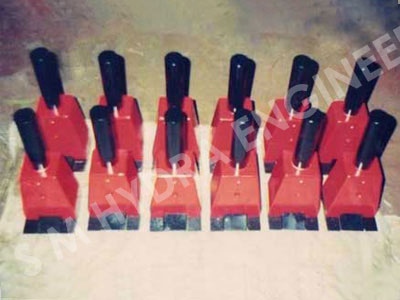

Flange Spreaders
An industrial tool which is also known as flange separator, used to separate the rusted or corroded flange. This tool works in between the gap of the flanges and

• To separate the flanges
• Hydraulically or manually operated
• Ease of operation
• Applications: Petro-Chemical, Steel, Mining etc.

S Bending Tool
A special purpose, tool used for bending of copper conductors. The winding of transformer consist of helical coils of copper conductor. Coil progresses in height layer by layer. A transition is required form on level to upper layer. This is achieved by bending the conductor slightly upward in S pattern. These tools are hydraulically operated and provide the optimum bend. The tool is available for different types of conductors. These tools are suitable to bend CT Conductors and PIC Conductors. We are the leading supplier of S Bending Tool World Wide. Also known as Offset Bending Tools they are used for Bending Copper Conductors

• Optimum off-set bend
• Hydraulically Operated
• Adjustable Off-Set distance of bend & Distance between bends
• Vertical & Horizontal Mounting arrangement
• Generally offered with Tool Suspension arrangement system
• Operates on Power Pack or Hydro-Pneumatic booster
• Always mention conductor size, maximum off-set distance and distance between bends in your inquiry
View More

Lead Bending Tool
A special purpose, tool used for bending of copper conductors. The winding of transformer consist of leads at its ends which require a 90 bend. These tools are hydraulically operated and provide the optimum bend. The tool is available for different types of conductors. These tools are suitable to bend CT Conductors and PIC Conductors

We are the leading supplier of 90 Degree Bending Tool World Wide. Also known as Lead Bending Tool generally used to bend the leads of copper Windings.

We offer a vast range of these tools for bending CT Conductors and PIC Conductors. The tool is provided with mobile type power pack or hand pump for operation.

• Optimum 90° bend
• Hydraulically Operated
• Bends up-to 90°
• Suitable for various heights & thickness of conductor
• Operates on Power Pack or Manual Hand Pump
• Vertical or Horizontal Mounting arrangement
• Always mention conductor size, maximum in your inquiry
View More
