Hydraulic Cylinders
We offer a broad array of quality Hydraulic Cylinders. These cylinders are designed in accordance with the industry defined standards for durability and high strength.
The offered range of product is provided in various specifications, to fulfill the needs of our clientele. Clients can avail this product range from us at most effective market rates.
Features:
• Compact Design
• Heavy Duty
• Customized Cylinders
• Ease of Maintenance
Specifications:
• Sizes: Bore Ø25mm to Ø600mm
• Stroke: Up to 4000mm
• Pressure: 160 kg/cm², 210 kg/cm², 350 kg/cm² Series
• Special Range: 550 kg/cm² and 700 kg/cm² range
• Types: Single Acting, Double Acting, and Multi Stage Cylinders
• Construction: Welded, Tie Rod Type
• Mountings: Clevis Mounted, Trunnion Mounted, Front Flanged, Bottom Flanged, Foot Lug etc.
• High Temperature (up to 150°C) applications (if required)
Features:
• Compact Design
• Heavy Duty
• Customized Cylinders
• Ease of Maintenance
Specifications:
• Sizes: Bore Ø25mm to Ø600mm
• Stroke: Up to 4000mm
• Pressure: 160 kg/cm², 210 kg/cm², 350 kg/cm² Series
• Special Range: 550 kg/cm² and 700 kg/cm² range
• Types: Single Acting, Double Acting, and Multi Stage Cylinders
• Construction: Welded, Tie Rod Type
• Mountings: Clevis Mounted, Trunnion Mounted, Front Flanged, Bottom Flanged, Foot Lug etc.
• High Temperature (up to 150°C) applications (if required)
Welded Type Hydraulic Cylinder
Features:
• Heavy Duty Applications
• Compact Design
• Consist of Welded and Screwed Cylinders
• Various type of mountings as Clevis, Trunnion & Flange
• Used for General Engineering, Pressing, Clamping, Lifting/ Tilting, Rolling Mills, Cranes, etc. View More
Features:
• Heavy Duty Applications
• Compact Design
• Consist of Welded and Screwed Cylinders
• Various type of mountings as Clevis, Trunnion & Flange
• Used for General Engineering, Pressing, Clamping, Lifting/ Tilting, Rolling Mills, Cranes, etc. View More

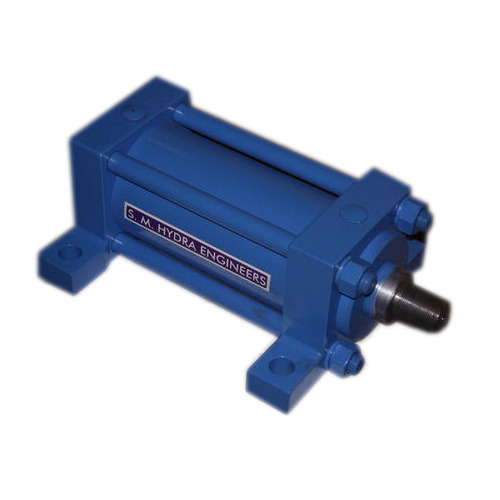

Tie Rod Type Hydraulic Cylinder
Features:
• Light to Medium Duty Applications
• Compact Sizes,
• Operating Pressure 70kg/cm², to 210 kg/cm²
• Easy for Maintenance
• Used in Automotive Industry, Machine Tool Industry.
• Various type of mountings as Clevis, Flange, Trunnion and Rod End Forks
View More

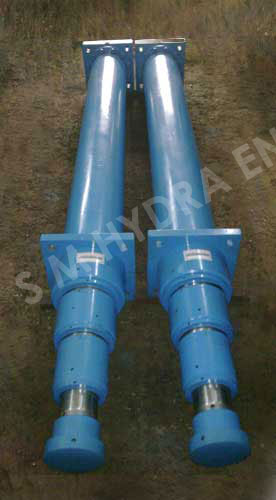

Telescopic Hydraulic Cylinder
Features:
• Low Retracted Length
• Exceptionally High Travel
• Operating Pressure up to 350 kg/cm²
• Single or Double Acting
• Maximum Stages: 5 No.
• Used for Material Handling, Agricultural Machines, Transport Hydraulics, Lifting Purposes & other Industrial Applications
View More
Features:
• Low Retracted Length
• Exceptionally High Travel
• Operating Pressure up to 350 kg/cm²
• Single or Double Acting
• Maximum Stages: 5 No.
• Used for Material Handling, Agricultural Machines, Transport Hydraulics, Lifting Purposes & other Industrial Applications
View More

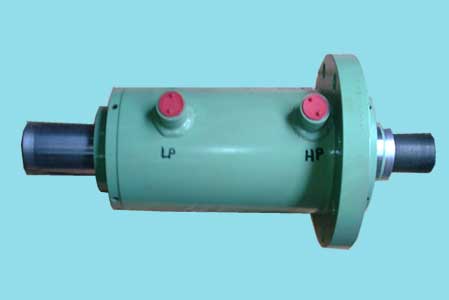

Double Rod Ended Hydraulic Cylinder
Specifications:
• Cap: Bore dia 25mm to 600mm
• Stroke – upto 4000mm
• Pressure – 160 kg/cm², 210 kg/cm², 350 kg/cm²
• Especially in 560 kg/cm² and 700 kg/cm² range
• Types – Single acting, double acting in tie rod type
• Welded and screwed ends construction and multistage telescope types
View More

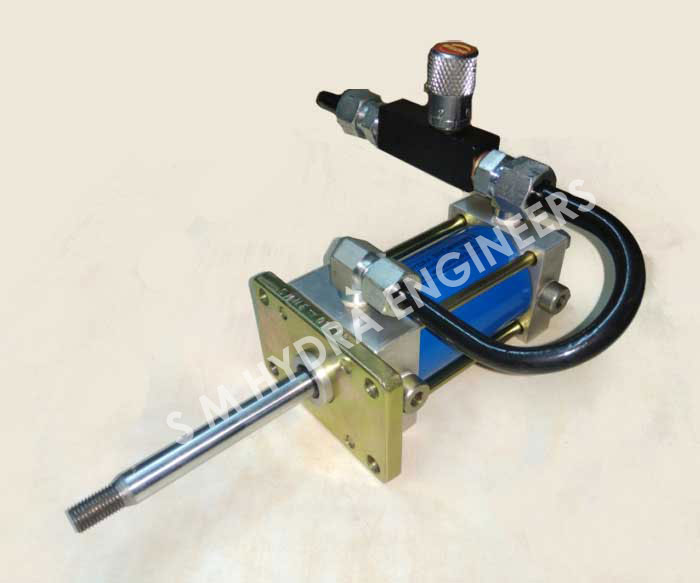

Special Purpose Cylinders
Dampening Cylinders, Hollow Ram Cylinders, Customized Designs
For Valve Actuators, Labs, Tensioning, Testing & Instrumentation Purposes.
View More
